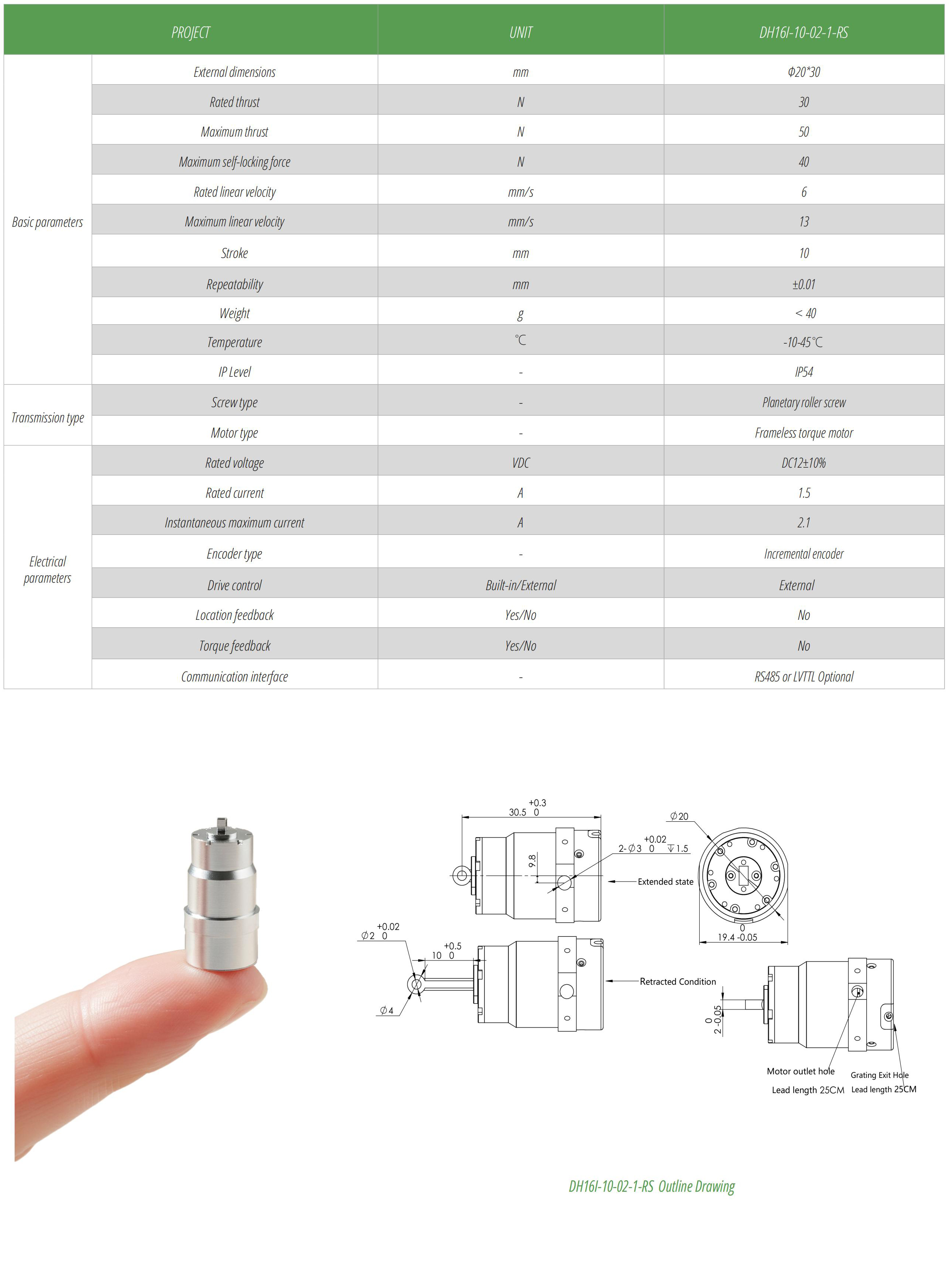

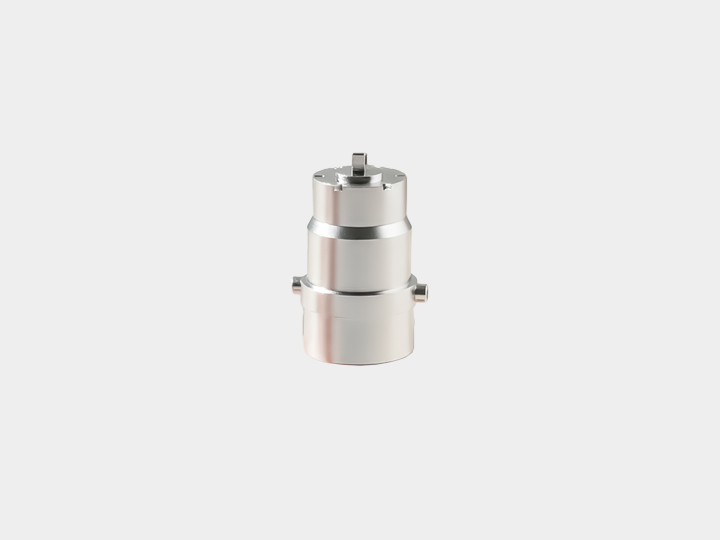

Micro Actuator DH16I

Applied to dexterous finger joints

The servo electric cylinder is a modular product that integrates the servo motor and lead screw design. It converts the rotational motion of the servo motor into linear motion, while transforming the best advantages of the servo motor - precise speed control, precise rotation control, and precise torque control - into precise speed control, precise position control, and precise thrust control; achieving a new revolutionary product for high-precision linear motion series.

  • Main Configuration: Planetary roller screw + brushless coreless motor
  • External Dimensions: Φ20*30（mm）
  • Maximum Thrust: ≥50N   Rated thrust:≥30N
  • Maximum Speed: ≥13mm/s   Rated linear velocity:≥6mm/s
  • Stroke Range: 0~10mm
  • Weight: ≤40g
  • Repeat Positioning Accuracy: ±0.01mm
  • Rated Voltage/Current: DC12V/1.5A
  • Driver: External
  • Encoder: Incremental encoder
  • Communication Protocol: RS485 or LVTTL Optional
  • Force Sensor: Customizable
  • IP Rating: IP54
  • Working Environment: Operating temperature: -10-45℃ (-40～60°C optional), Storage temperature: -40～80°C Environmental humidity: 90% relative humidity (no condensation)
