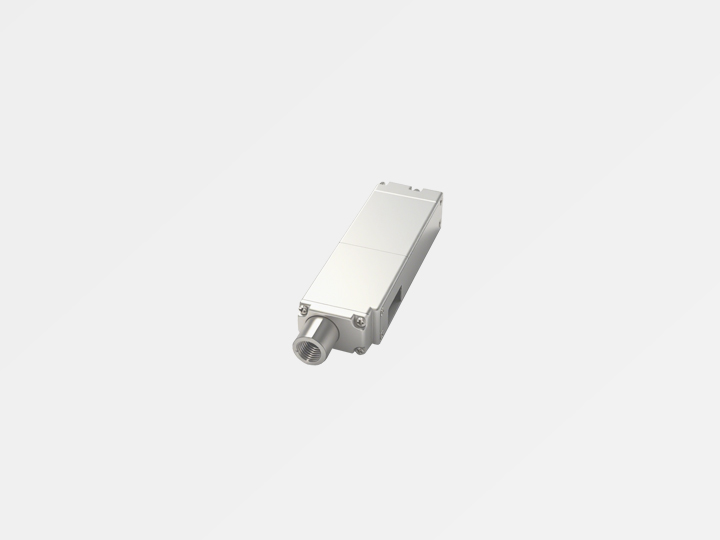

Micro Actuator DH06L

Applied to Dexterous Hand Finger

The servo electric cylinder is a modular product that integrates the servo motor and screw, converting the rotational motion of the servo motor into linear motion. It transforms the best advantages of the servo motor - precise speed control, precise rotation control, and precise torque control - into precise speed control, precise position control, and precise thrust control; it is a revolutionary new product for high-precision linear motion series.

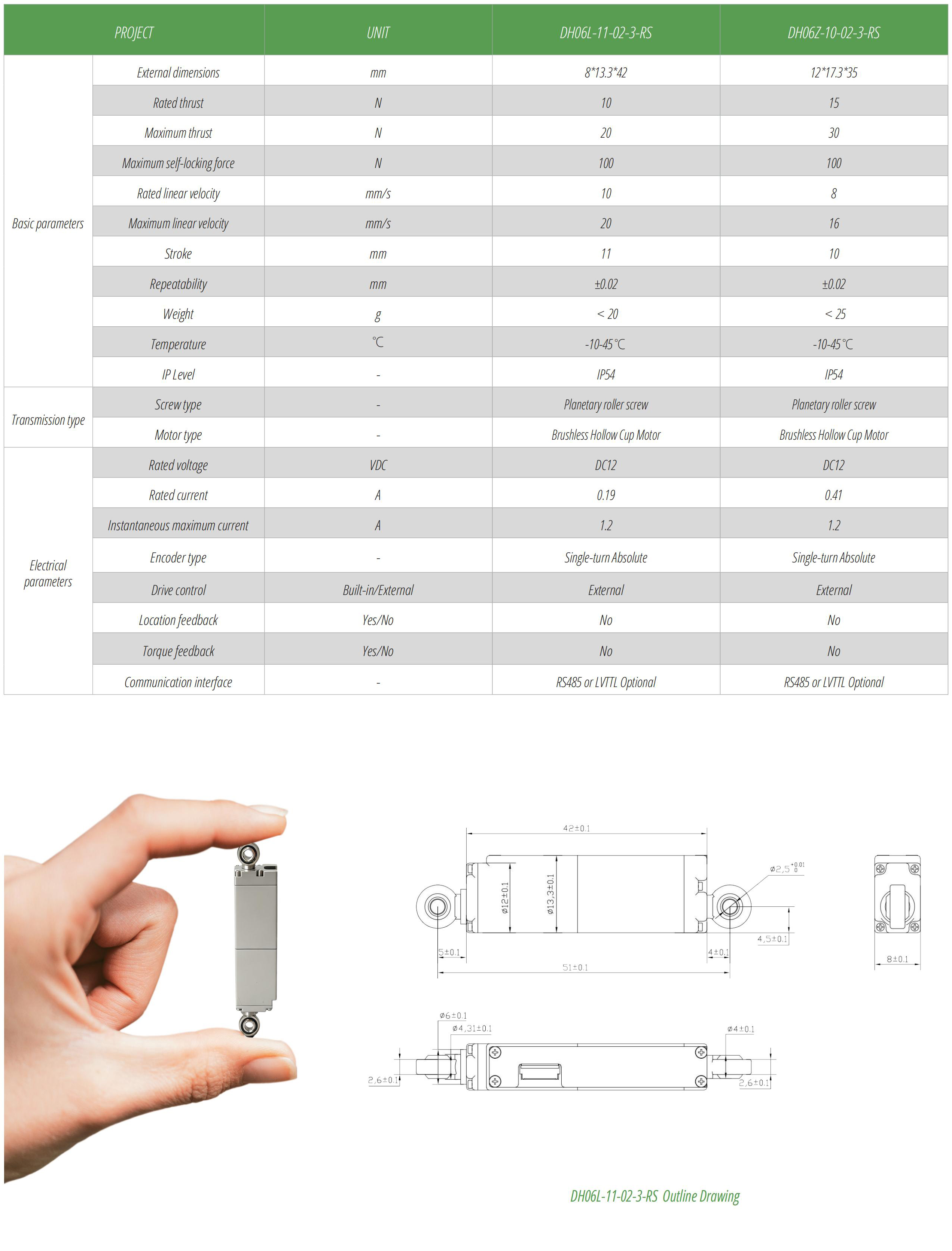

  • Main Configuration: Planetary roller screw + brushless coreless motor
  • External Dimensions: 8*13.3*42（mm）
  • Maximum Thrust: ≥20N   Rated thrust:≥10N
  • Maximum Speed: ≥20mm/s   Rated linear velocity:≥10mm/s
  • Stroke Range: 0~11mm
  • Weight: ≤20g
  • Repeat Positioning Accuracy: ±0.02mm
  • Rated Voltage/Current: DC12V/0.19A
  • Driver: External
  • Encoder: Single-turn Absolute
  • Communication Protocol: RS485 or LVTTL Optional
  • Force Sensor: Customizable
  • IP Rating: IP54
  • Working Environment: Operating temperature: -10-45℃ (-40～60°C optional), Storage temperature: -40～80°C Environmental humidity: 90% relative humidity (no condensation)
